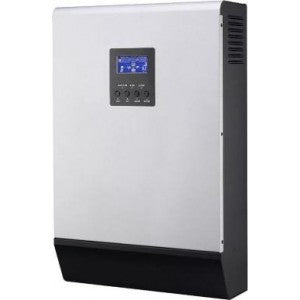

Rct Axpert 5K MK2 5000VA/5000W Inverter 48V DC
Overview:
Axpert MKS II 5KVA with MPPT solar charger
Axpert MKS is equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for charging
the battery bank. Transformerless design provides reliable power conversion in compact size. Besides, its worry-free to start up
motor-type loads such as refrigerators, motors, pumps, compressors and laser printers as well as electronic loads like TVs,
Computers, power tool and battery chargers.
Features:
Pure sine wave inverter
Output power factor 1 (only 0.8 for 3KP/5KP Models)
Built-in battery equalization function to extend battery life cycle
Built-in MPPT solar charge controller
Selectable input voltage range for home appliances and personal computers
Selectable charging current based on applications
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Battery equalization for optimized battery performance and lifecycle
Parallel operation with up to 9 units only available for Axpert MKS 3KP/4KVA/5KVA*
Specifications:
Product Code RCT-AXPERT 5K MK2
Model Axpert MKS II 5K
Rated Power 5000 VA / 5000 W
Parallel Capability Yes, 9 units
INPUT Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers), 90-280 VAC (For Home Appliances)
Frequency Range 60/50 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230 VAC ± 5%
Surge Power 10000 VA
Efficiency (Peak) 90%
Transfer Time 10 ms (For Personal Computers), 20 ms (For Home Appliances)
Waveform Pure Sine Wave
BATTERY
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 66 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage 450 VDC
Maximum PV Array Power 4500 W
MPPT Range @ Operating Voltage 120 VDC~430 VDC
Maximum Solar Charge Current 80A
Maximum AC Charge Current 80A
Maximum Charging Current 80A
PHYSICAL Dimension, D X W X H (mm) 120 x 295 x 468
Net Weight (kgs) 11
OPERATING ENVIRONMENT
Operating Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C to 55°C
Storage Temperature -15°C to 60°C
