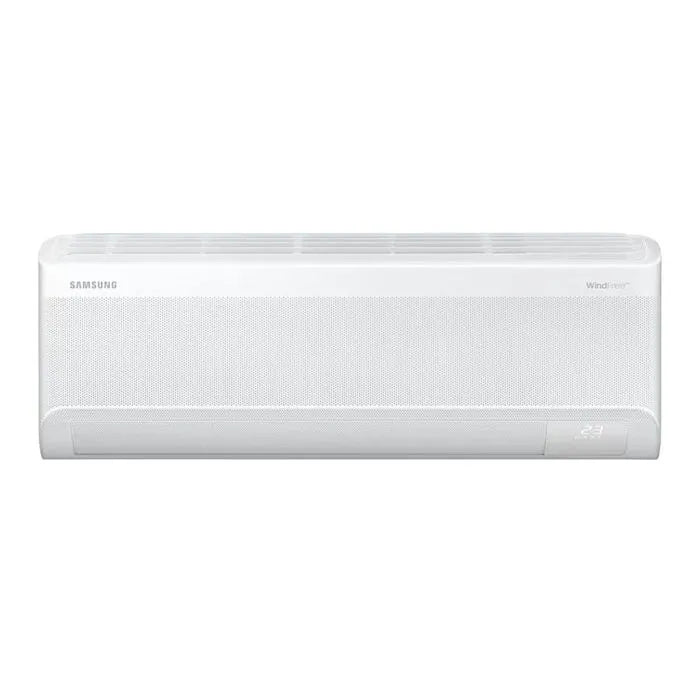

SASamsung 12000BTU Wall-Mount AC With Wind-Free - AR70F12C1FW

•AI Fast & Comfort Cooling
•AI Energy Mode
•Comfort Drying

Specifications
Capacity (Cooling, Btu/hr)11942
 Capacity (Cooling, kW)3.50
 EER (Cooling, W/W)3.21
 Net Dimension (Outdoor, WxHxD, mm)710 x 540 x 220

Specifications Detail
Capacity
Capacity (Cooling, Btu/hr)11942
 Capacity (Heating, Btu/hr)12966
 Capacity (Cooling, Min - Max, Btu/hr)3583 - 13649
 Capacity (Heating, Min - Max, Btu/hr)2218 - 17061
 Capacity (Cooling, kW)3.50
 Capacity (Heating, kW)3.80
 Capacity (Cooling, Min - Max, kW)1.05 - 4
 Capacity (Heating, Min - Max, kW)0.65 - 5

Energy Efficiency
EER (Cooling, W/W)3.21
 COP (Heating, W/W)3.41
 EER (Cooling, Btu/hW)10.96
 COP (Heating, Btu/hW)11.63
 Energy Efficiency Class for cooling (Grade)C : A, H : A+

Noise Level
Noise Level (Indoor, High/Low, dBA)38/22
 Noise Level (Outdoor, High/Low, dBA)46

Electrical Data
Power Source(Φ/V/Hz)1 / 220~240~ / 50
 Power Consumption(Cooling, W)1090
 Power Consumption(Heating, W)1115
 Operating Current(Cooling, A)5
 Operating Current(Heating, A)5

Physical specification
Gross Dimension (Indoor, WxHxD, mm)880 x 290 x 375
 Gross Dimension (Outdoor, WxHxD, mm)834 x 620 x 323
 Net Dimension (Indoor, WxHxD, mm)820 x 299 x 215
 Net Dimension (Outdoor, WxHxD, mm)710 x 540 x 220
 Gross Weight (Indoor, kg)10.1
 Gross Weight (Outdoor, kg)26.3
 Net Weight (Indoor, kg)8.7
 Net Weight (Outdoor, kg)24.5
 Loading Quantity (20/40/40Hft without Pipe)105 / 212 / 252

Technical Information
Piping Length (Max, m)15
 Piping Height (Max, m)8
 SVC Valve (Liquid (ODxL))6.35
 SVC Valve (Gas (ODxL))9.52
 Moisture Removal (l/hr)1.39
 Air Circulation (Cooling, ㎥/min)10.30
 Refrigerant (Type)R32
 Refrigerant (Charging, kg)0.7
 Refrigerant (Charging, tCO2e)0.47
 Low Ambient (Cooling, ℃)-10~46
 Low Ambient (Heating, ℃)-15~24
 Outdoor Unit (Compressor Type)BLDC
 Outdoor Unit (Anti-Corrosion Fin)Yes

Air Flow
WindFree CoolingYes
 Air Direction Control (Up/Down)Auto
 Air Direction Control (Left/Right)Auto
 Air Flow Control Step (Cool/Fan)5/4

Air Purification
PM 1.0 FilterNo
 4-in-1 Care FilterYes
 Copper Anti-bacterial FilterYes
 Auto Clean (Self Cleaning)Yes

Convenience
SmartThingsYes
 AI Auto CoolingYes
 Motion Detect SensorNo
 Freeze WashYes
 Filter Cleaning IndicatiorYes
 Indoor Temp. DisplayYes
 Display On/OffYes
 Beep On/OffYes
 24-Hour TimerYes
 Auto ChangeoverYes
 Auto RestartYes

Operating Mode
Auto ModeYes
 Fast CoolYes
 Dry ComfortYes
 Good SleepYes
 Eco ModeYes
 DehumidificationYes
 Fan ModeYes
 QuietYes

Smart
WiFi EmbeddedYes

App Connectivity
SmartThings App SupportYes
