Specifications

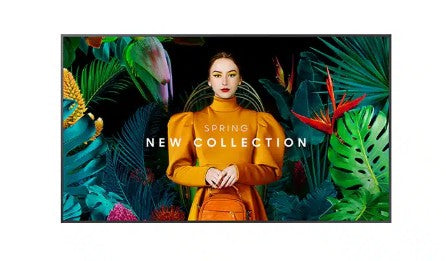

Samsung QB75C 75″ 4K UHD Professional Smart Signage Display (LH75QBCEBGCXEN) – Resolution: 4K 3840 x 2160 VA, Contrast Ratio: 4000:1, Response Time: 8ms, Brightness: 350nits, 8GB Flash Memory, Wi-Fi + Bluetooth, Connectivity: 3 x HDMI 2.0, 2 x USB, 1 x IR in, 1 x Audio Out Stereo Mini Jack, 1 x RS232 in, 1 x RS232 Out, 1 x RJ-45, Wall Mountable: VESA (400 x 400mm), Operating System: Tizen 7.0

What's in the Box

Samsung QB75C 75" 4K UHD Professional Smart Signage Display (LH75QBCEBGCXEN), Quick Setup Guide, Warranty Card, Power Cord, RS232C(IN) Gender, Remote Controller, Batteries

Warranty

2 Year Limited Carry-in Warranty

Display
Diagonal Size
75"

Panel Type
VA

Resolution
3,840 x 2,160

Pixel Pitch (HxV)
0.429x0.429mm

Brightness (Typ)
350 nit

Contrast Ratio
4,000:1

Viewing Angle (H/V)
178/178

Response Time
8ms

Colour Gamut
72% (NTSC)

Glass Haze
2%

H-Scanning Frequency
30~81kHz

Maximum Pixel Frequency
594MHz

V-Scanning Frequency
48~75Hz

Contrast Ratio (Dynamic)
Mega

Operation Time Support
16/7

Connectivity
HDMI In
3

DP In
No

Version of HDMI
2

Version of DP
No

Version of HDCP
2.2

USB
2

IR In
Yes

Audio In
No

Audio Out
Stereo Mini Jack

RS232 In
Yes

RS232 Out
Yes

RJ45 In
Yes

WiFi
Yes

Bluetooth
Yes

Power
Power Supply
AC100-240V 50/60Hz

Power Consumption (On Mode)
214.5 W

Power Consumption (Sleep Mode)
0.5 W

Dimensions
Set Dimension (WxHxD)
1682.3 x 960.4 x 28.5 mm

Package Dimension (WxHxD)
1839 x 1113 x 180 mm

Weight
Set Weight with Stand
33.4 kg

Package Weight
43.5 kg

Operation Conditions
Temperature
0℃~ 40℃

Humidity
10 ~ 80%, non-condensing

Mechanical Specification
VESA Mount
400 x 400 mm

Bezel Width
13.4mm (even)

Frame Material
Non-Glossy

Optional Feature
Mount
WMN-B50SC

Stand
STN-L6585C

SoC
OS Version
Tizen 7.0

Flash Memory Size
8GB

Certification and Compliance
EMC
Class B

Safety
60950-1, 62368-1
