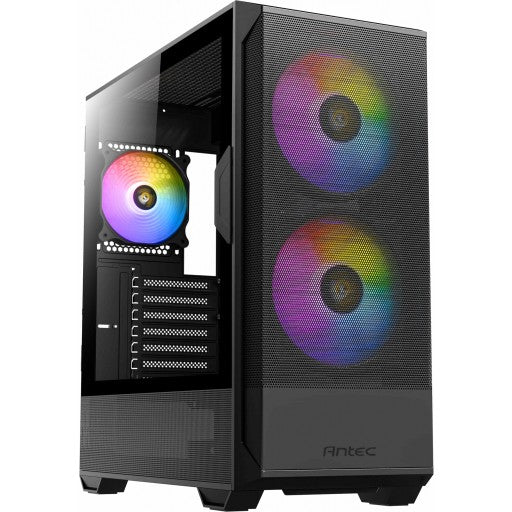

Antec NX416L Tempered Glass Steel Black Mid-Tower ATX Desktop
SPECIFICATIONS
Brand Antec
Series NX Series
Model NX416L
Physical Details
Colour Black
Materials Plastic
Steel
Side Panel Tempered Glass Side Panel
Front I/O Power
LED Control Button
1x USB 3.0
1x USB Type-C
1x Headphone/Mic Combo Jack
Motherboard Support ATX, Micro-ATX , ITX
Expansion Slots 7
Drive Bays 3.5" / 2.5": 2 / 2
2.5": 3
PSU Support ATX
Dimensions 471mm x 210mm x 486mm
Weight 7.5Kg
Pre-Installed Fans
Front 2x 160mm Antec Custom Fan
Rear 1x 120mm ARGB Fan
Fan Support
Front 3 x 120mm / 3 x 140mm
Top 3x 120mm / 2x 140mm
Power Supply Shroud 2x 120mm
Side 2x 120mm
Rear 1x 120mm
Radiator Support
Front 120 / 140 / 240 / 280 / 360mm
Top 120 / 140 / 240 / 280 / 360mm
Side 120 / 240mm
Rear 120mm
Clearance
CPU Cooler Height Limitation ≤ 168mm
GPU Length Limitation ≤ 280mm (when radiator is installed on the side)
≤ 390mm (with front fan)
≤ 415mm (without front fan)
PSU Length Limitation (Include cable) ≤ 240mm
General
Dust Filters Top / Bottom / Right Side
Warranty Information
Warranty 1 Year Warranty SPECIFICATIONS
