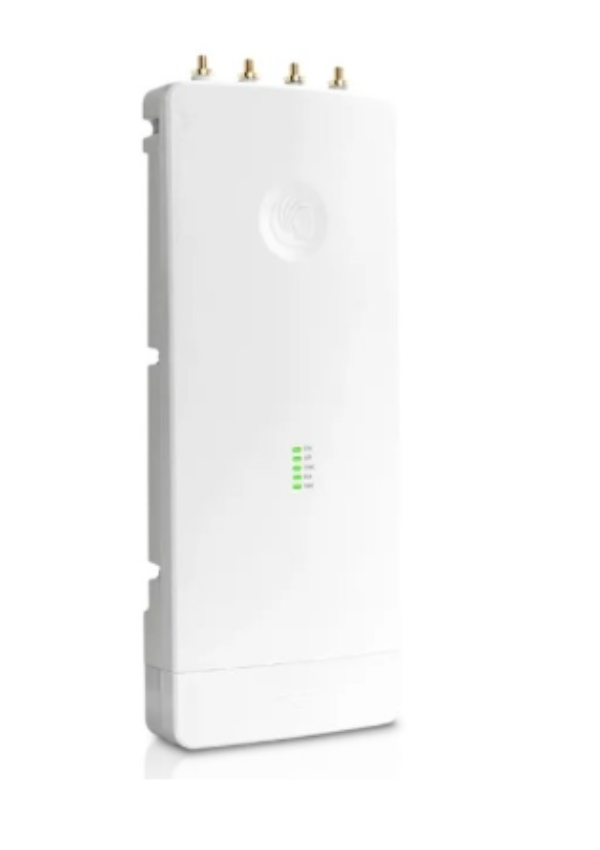

Cambium Networks ePMP 3000 5GHz AC Wave 2 4X4 MU-MIMO FSR Access Point C050911A201A

High Performance, Scalability, Reliability

Cambium Networks’ ePMP™ product line has set the standard for high performance, scalability, and reliability in harsh interference environments, all at a compelling price.

The ePMP 3000 FSR 5.1–5.9 GHz series of access points (AP) is the third generation based on 802.11ac Wave 2 techology. These APs interoperate with Force 300 Subscriber Modules (SM) and support backward compatiblity.

ePMP 3000 APs can deliver up to 600 Mbps aggregate to each Force 300 SM. A sophisticated scheduling and QoS engine combined with TDD synchronization allows the it to deliver consistently high-quality service plans to a large number of end users.

ePMP 3000 FSR 5.1–5.9 GHz can deliver 1.2 Gbps serving 120 or more subscribers. Featuring 4x4 MU-MIMO and dual overlapping sectors, this AP can transmit to 2 SMs at the same time, effectively doubling the capacity of 2x2 systems and in the process, increasing link budgets by 3 dB with downlink beamsteering.

The AP can be fitted with either a 90º MU-MIMO sector antenna or a 60º MU-MIMO horn antenna. For additional interference mitigation, the AP supports dynamic filtering for neighboring channel interference. With TDD synchronization, ePMP 3000 networks can scale to thousands of end users leveraging a small number of channels.

cnMaestro Network Management

All ePMP 3000 APs are managed with cnMaestro™ Network Management (free cnMaestro or subscription cnMaestro X), and networks can be planned easily and accurately with our free LINKPlanner.

Technical Specifications:

Wireless
Frequency Range: 5100–5970 MHz
Channel Widths:

• 20 MHz
• 40 MHz
• 80 MHz

Channel Spacing: Configurable In 5 MHz Increments
Physical Layer: 4x4 MU-MIMO/OFDM
MAC Layer: Cambium Proprietary

Networking
Ethernet Interface:

• 100/1000 Base-T, Auto-Negotiated
• 802.3at Compliant
• Auxiliary SFP Port

Supported Protocols:

• IPv4/IPv6
• UDP
• TCP
• IP
• ICMP
• SNMPv2c
• HTTPS
• STP
• SSH
• IGMP Snooping

Network Management:

• HTTPS
• SNMPv2c
• SSH

VLAN Support: 802.1Q With 802.1p Priority

Performance
Subscribers Per Sector: Up To 120
ARQ Support: Yes

Receive Sensitivity (20 MHz Channel):

• MCS0: -92 dBm
• MCS9: -68 dBm

Receive Sensitivity (40 MHz Channel):

• MCS0: -89 dBm
• MCS9: -64 dBm

Receive Sensitivity (80 MHz Channel):

• MCS0: -86 dBm
• MCS9: -61 dBm

Modulation Levels: MCS0 (BPSK) To MCS9 (256 QAM 5/6)
GPS Synchronization: Internal GPS Or Cambium Sync

QoS Features:

• Three-Level Priority (Voice, High, Low)
• Packet Classification By DSCP, COS, VLAN ID, IP Address, And MAC Address
• Broadcast, Multicast, And Station Priority Support

Transmit Power
Transmit Power Range: 0 To +32 dBm (Combined, To Regional EIRP Limit)

Antenna
Sector Antenna Compatibility: Part # C050910D301A
Optional Smart Antenna For Uplink Beamforming: Part # C050900D020A

Sector Antenna Connections:

• 4 X 50 Ohm SMA

Beamforming Antenna Connections:

• 2 X 50 Ohm RP-SMA
• DC Coupled (Powering Antenna)

GPS Antenna Connection:

• 1 X 50 Ohm

GPS Puck: Included

Power
Supported Powering Methods:

• 56 V PoE (Included)
• Standard 802.3at PoE Supply
• CMM5 With 56 V And 5-Pin To 7-Pin Crossover Cable Adapter

Power Consumption: 25 W Maximum
Input Voltage: 44 V To 59 V

Environmental
Environmental Rating: IP55
Operating Temperature: -30°C To 55°C (-22°F To 131°F)
Integrated Surge Suppression: 1 Joule

Security
Encryption: 128-Bit AES (CCMP Mode)

Certifications
Certifications:

• FCC ID: Z8H-89FT0024
• Industry Canada: 109W-0024
• CE

Physical Specifications
Dimensions (Diameter X Depth): 22.2 X 12.4 X 4.5 Cm
Weight: 0.7 Kg (1.5 Lb) Without Bracket
