Centurion Single Vantage 500 Complete Kit
Description
Swing Gate Motor Vantage Single Swing
Swing gate motor Centurion Vantage 500 single swing
Exceptionally easy system setup via LCD user interface.
Supports inward- and outward-opening gates without needing mechanical endstops.
High push force.
Full position control.
Fast operating speed, with smooth acceleration and deceleration.
Safe anti-crushing protection.
Multiple operating features including Intruder-detection Alarm Modes (a world first).
Onboard CENTURION code-hopping multichannel receiver with selective add and delete.
Battery backup for uninterrupted operation during power failures.
PRODUCT INFO
Input Voltage 90v - 240V AC +/- 10%, 50/60Hz []
Motor Voltage 12V DC
Motor Power Supply Battery-driven [] 1.8A Charger
Push Force - Max 250kgf
Typical Gate Opening Time V400 (short stroke) 14.3 sec / V500 (long stroke) 17.8 sec (V500)
Duty Cycle - Mains Present 50% []
Daily Operations - Max 250
Maximum Leaf Width for Corresponding Gate Mass (90° opening) [**] V400 ,2.5m = 500kg Onboard Receiver Specification CENTURION code-hopping, multichannel, 433MHz, Capacity - 65 transmitter buttons
What's in the box

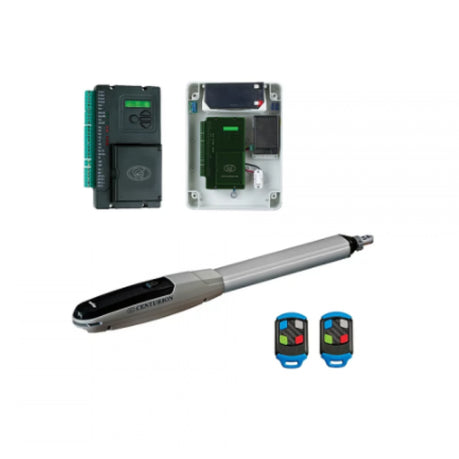

1x CENTURION SINGLE VANTAGE 500 COMPLETE KIT
Product Information
Categories: Garden, Pool & Patio / Home Improvement / Safety & Security / Gate Motors
Brand: Centurion
Warranty: Limited (6 months)
What's in the box
1x CENTURION SINGLE VANTAGE 500 COMPLETE KIT
Basic Colours: White
Barcode:
MPTALX13015824-2
