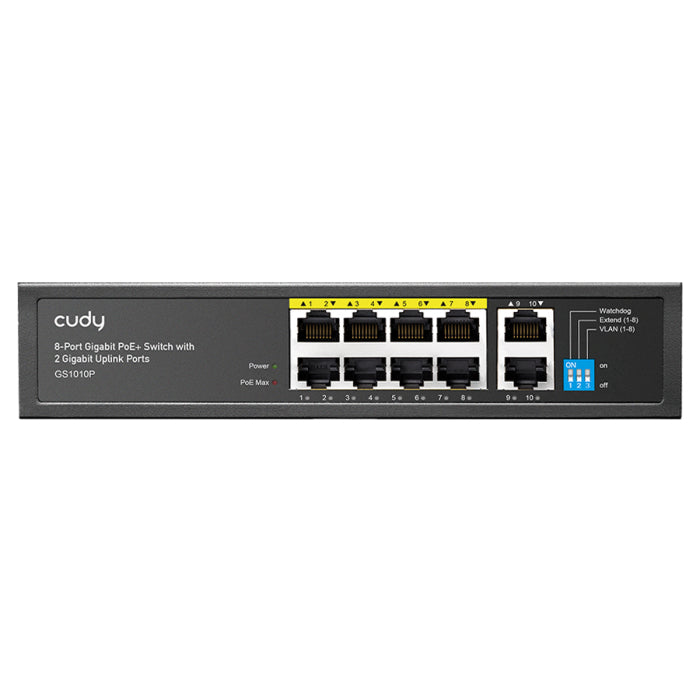

Cudy's CD-GS1010P is a 10-Port Gigabit switch with 8x 802.3af/at PoE ports and 2x Gigabit Uplink ports. The switch offers a 100W PoE budge with up to 30W per port. Both VLAN and Extender modes are supported with the integrated toggle switch. VLAN mode enables port isolation on ports 1-8 while Extender mode increases the transmission distance on ports 7-8 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections when in VLAN or Extender Mode. If an error is detected on the device, the switch immediately restarts the port. The unit features a PoE Max LED that blinks at 90% usage and stays solid at 95%.
Ethernet Ports: 10x 10/100/1000
Hardware Button: VLAN ; Extender ; Default
Max. Power Consumption: 20W
Mounting: Desktop or Rack-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~8

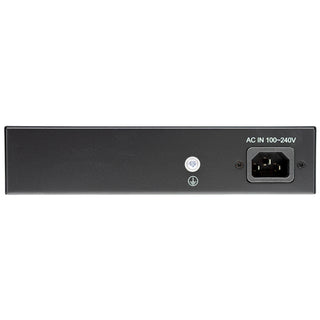

Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 100-240V
