WHILE STOCK LASTS!!!
Features
H.265+/H.265 dual-stream video compression
Supports Full-channel AI Coding.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 16 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth.
Up to 8 channels video stream (analog channel) Perimeter Protection.
Up to 8 channels video stream (analog channel) SMD Plus.
Up to 2 channels video stream (analog channel) human face recognition.
IoT & POS functionalities.
Face Recognition
Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database to recognize the person identity.
Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Scheduled AI
This technology allows multiple AI functions to be set for one channel based on time frames, eliminating the need to manually configure the system to switch between functions each time. Scheduled AI greatly increases efficiency and widens the number of scenarios that the device can be used in.
Smart Dual Illuminators
With Smart Dual Illuminators technology, you can select Smart Illumination Mode for the system to automatically switch between IR mode and white light mode. It allows white light to be turned on when a target is detected by the SMD Plus/Perimeter Protection function of AI-enabled XVR. This significantly reduces light pollution at night. Together with other modes, including IR Mode and White Light Mode, the smart dual illumination technology can meet the requirements of a wide variety of scenes.
One-click Arming/Disarming
With just one click, you can enable or disable alarm linkages to show messages, send emails, output audio alarms and more, through the mobile app and platform.
Customizable Alarm Audio
Designed for your convenience, the TiOC alarm can be customized to meet your needs. It is flexible, allowing you to directly upload your customized audio through the mobile app and XVR.
AI Coding
Compared with H.265/H.264, AI coding can reduce more than 50% bit rate and storage requirements without loss of decoding compatibility, providing clear human and vehicle details.
Audio over Coax
The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.
Technical Specification

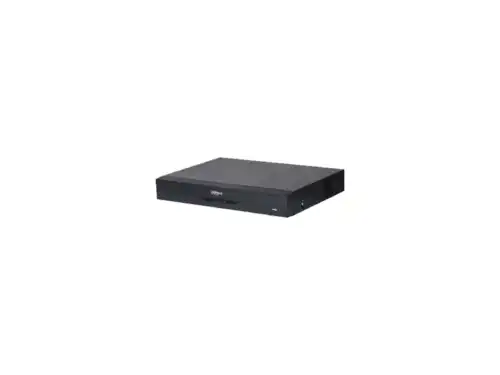

Product: DH-XVR5108H-4KL-I3
Main Processor: Embedded processor
Operating System: Embedded Linux
Operating Interface: Web; Local GUI
Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input
CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@20 fps; 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.
TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps
IP Camera Input
Up to 16 channels of IPC access
8 IP channels by default + 8 channels (analog channels are converted to IP channels)
Incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Third-party Camera Access: ONVIF; Panasonic; Sony; Axis; Arecont; Samsung
General Alarm: Motion detection, Video Loss, tampering
Anomaly Alarm: No disk; storage error; disk full; camera offline; IP conflict; MAC conflict
Intelligent Alarm: Face detection; face recognition; perimeter protection
Audio Input:
1-channel RCA
8-channel BNC (Coaxial Audio)
Audio Output: 1-channel RCA
Two-way Talk: Yes (share the same audio input with the first channel)
Alarm Input: 16 channels
Alarm Output: 3 channels
HDD Interface: 1 SATA port, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature.
RS-485: 1 Port, for PTZ Control
USB: 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI: 1
VGA: 1
Network Port: 1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply: 12 VDC, 2A
