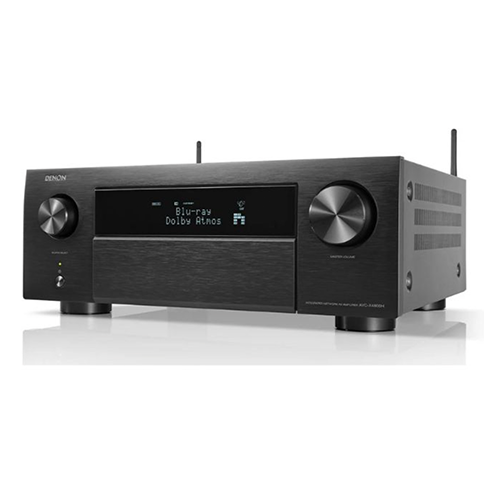

Denon AVC-X4800H AV Receiver

8K video and 3D audio experience from a 9.4 channel receiver

Designed and manufactured in Japan, the powerful AVC-X4800H drives 9.4 channels of amplification. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X4800H envelops larger living spaces in breathtaking 3D audio. With HEOS� Built-in, wirelessly stream your favorite music.

9.4 channels

200 watts per channel

8K Ultra HD

3D Audio

HEOS Built-in

7 HDMI inputs

Enveloping 3D audio

Feel like you're in the centre of the action with enveloping 3D sound.

Expert ready

Take advantage of the wide variety of configuration options to best fit your space.

Denon craftsmanship

Designed and manufactured at Denon facilities in Japan and tuned by the Denon Sound Master.



Dolby Atmos

Feel every dimension in Dolby Atmos. Upgrade your home theatre with a 5.4.4 speaker setup to unleash a fully immersive 3D audio experience from Dolby Atmos content. Dolby Surround upmixer engages all speakers to create 3D audio sensations from legacy content. Dolby Atmos Height Virtualization Technology creates the sensation of overhead sound even without a 5.1.2 system. You can also enjoy Dolby Atmos music tracks available from Apple Music, Amazon HD, TIDAL, or a compatible streaming device.

IMAX Enhanced

Get the most premium at-home entertainment experience with IMAX Enhanced—the latest technology from DTS that sets a new standard for home theatre imaging, sound, scale, and clarity. See clearer pictures and brighter images. Feel immersive, heart-pounding audio and experience premium content digitally remastered by IMAX. You can enjoy IMAX Enhanced experience starting from 5.1.4 speaker setup. IMAX Enhanced compatible TV or projector is required.

Pre-Amplifier Mode

Your Denon AV amplifier can work as a perfect AV preamplifier with the latest HDMI connectivity. Pre-Amplifier Mode provides a cleaner signal path and more tolerance in clipping level by disconnectinginternal amplifiers. Add the flexibility to disconnectselect speaker channels so that you can use the AV receiver's built-in amplification to drive non-critical channels to get a clearer signal path for the channels driven by external amplification.



Specifications

Multichannel Surround

DTS HD Master, DTS:X, DTS:X Pro Yes, Yes, No

DTS Neo:X, DTS Neural:X No, Yes

DTS Virtual:X Yes

IMAX Enhanced Yes

Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music Yes, Yes, Yes, Yes

Dolby ProLogic Ilz, Dolby Surround No, Yes

Auro 3D Yes

360 Reality Audio / MPEG H Yes, Yes

Multichannel Stereo Yes

Max. Number of Processing (Pre-Amp) Channels 11.4

Sound Enhancements

Discrete Power Amplifier Yes

D.D.S.C. HD Digital Yes (32 bit)

Pure Direct Yes

Clock Jitter Reducer Yes

Alpha Processing AL32 Processing Multichannel

Audyssey MultEQ XT32

Audyssey Dynamic EQ, Dynamic Volume Yes, Yes

Audyssey LFC Yes

Dirac Live Upgradability Yes

Compressed Audio Restorer Yes

Network

Media Server Yes

HEOS Wireless Multi-Room Technology Yes

Alexa / Google Voice Assistant / Apple HomePod Yes, Yes, Yes

Lossy Formats: MP3, WMA, AAC Yes, Yes, Yes

Lossless Formats: FLAC, ALAC, WAV Yes, Yes, Yes

Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) Yes, Yes, Yes

DSD Audio Streaming Yes (2.8/5.6MHz)

AirPlay 2 Yes

TuneIn Yes

Spotify Connect Yes

Roon Tested Yes

HEOS App Control Yes

Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote

Ethernet Ports Yes

Wi-Fi Yes

Bluetooth Yes

HDMI

HDMI Inputs: Back, Front 7, No

HDCP2.3 support Yes

HDMI Outputs: Main, Zone 2, 1

HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB Yes, Yes

HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR Yes , Yes, Yes, Yes, Yes

ALLM (Auto Low Latency Mode) Pass-through for gaming Yes

Variable Refresh Rate, Quick Flame Transport, Quick Media Switching Yes, Yes, No

3D Signal Pass-through Yes

8K Signal Pass-Through, Scaling, GUI Overlay Yes, Yes, Yes

DSD Audio Capability Yes

Audio Return Channel (ARC), Enhanced ARC Yes, Yes

Auto LipSync Yes

Multi-room CI

Multi-Room Zones 3

Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog Yes (2ch), Yes (2ch), Yes, Yes

Zone Audio Output: Speaker, Pre-Out Yes, Yes

Zone HDMI Output from HDMI Source Yes

IP Control, RS232 Control, Web Control, App Control Yes, Yes /Yes, Yes

Remote In / Out Yes, Yes

DC Trigger Output 3

HDMI Diagnostics Yes

Others

Auto Speaker Setup by Microphone Audyssey MultEQ XT32

Dirac Live (upgrade)

Front Display 2-Line FLD

GUI Languages 3

Setup Assistent Yes

Quick Select Plus, Quick Select Yes, No

Variable Crossover Yes

Optimized Bass Redirection Yes

Bass Sync Yes

ECO Mode Yes

Auto Power Off Yes

Sleep Timer Yes

Inputs/Outputs

HDMI In, Out 7, 3

Multi-Room Video Out: Video, HDMI No, Yes

Analog In, Out 6 / No

Phono (MM) In Yes

Digital In: Optical, Coaxial 2 / 2

Multi-Room Out: Analog, Digital 2 / No

Multichannel Preout Yes (11.4)

Subwoofer Out 4 (independent)

Speaker Terminal: Gold-Plated Screw, Regular Screw No, Yes

Number of Speaker Terminals 11

Speaker A / B Assignable

Bi-amp Drive Assignable

Multi-Room Speaker Terminal Assignable

Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB No, No, No, No, Yes

USB Audio, Made for iPod, Made for iPhone Yes, No, No

AM/FM Tuner No

Specifications

Number of Power Amps 9

Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) 125W

Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 165W

Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 200W

General

Metal Front Panel Yes

System Remote Control RC-1252

Pre-Programmed, Learnable, LCD Display Yes, No, No

Power Consumption in W 710

Power Consumption No-Sound (ECO On / Off) in W 65 W / 110 W

Standby Consumption in W 0.1

CEC Standby Consumption in W 0.5

Network Standby Consumption in W Less than 2.0

Maximum Dimensions

Antenna:Horizontal:(W x D x H) in mm

( Antenna:Vertical :(W x D x H) in mm)

? w/o Antenna :(W x D x H) in mm? 434 x 389 x 167

( 434 x 389 x 236 )

? 434 x 379x 167 ?

Weight in kg 13.4

Carton Weight (inc. product) in kg 16.0
