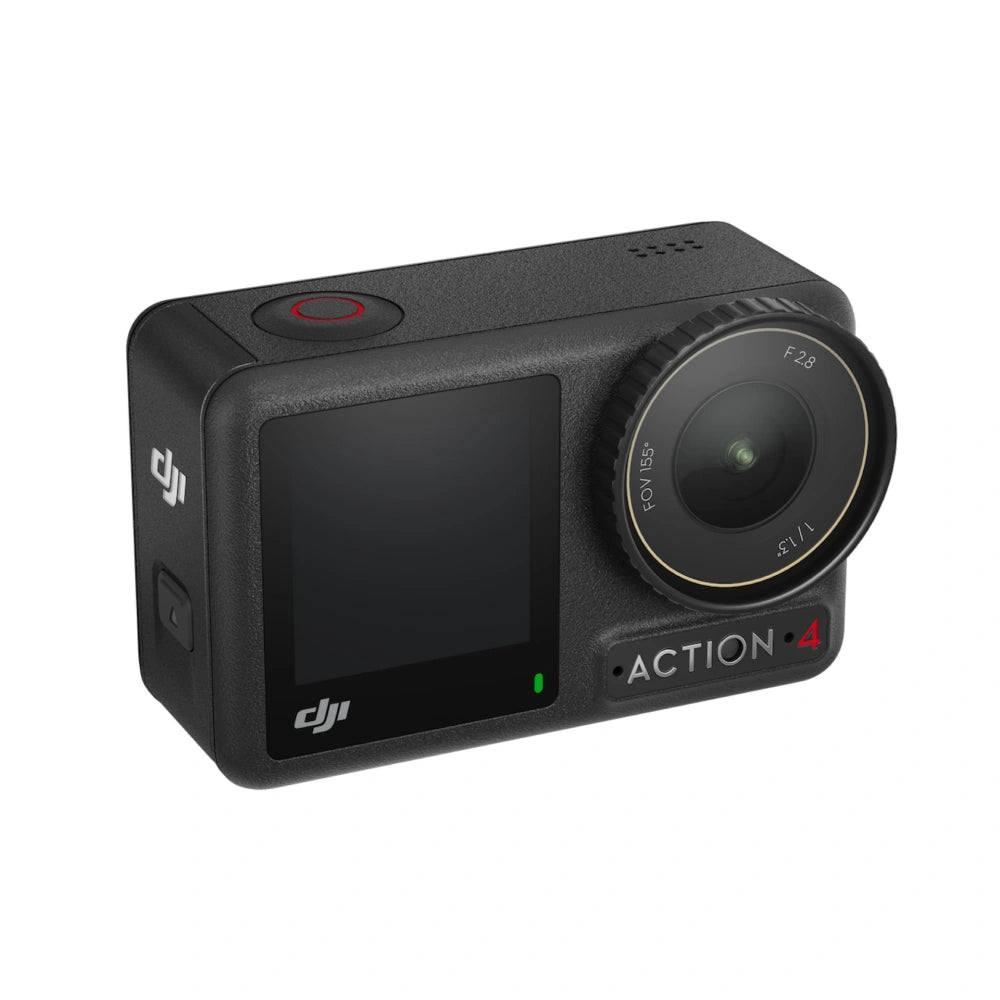

DJI Osmo Action 4 Standard Combo
Battery And Power
Type: LiPo 1S
Capacity: 1770 mAh
Energy: 6.8 Wh
Voltage: 3.85 V
Operating Temperature: -20° to 45° C (-4° to 113° F)
Charging Temperature: 5° to 40° C (41° to 104° F)
Operating Time: 160 minutes
Size and Weight
Dimensions: 70.5×44.2×32.8 mm (L×W×H)
Weight: 145 g
Charging Time
49 mins
Camera and Video
Camera
Sensor: 1/1.3-inch CMOS
Lens
FOV: 155°
Aperture: f/2.8
Focus Range: 0.4 m to ∞
ISO Range
Photo: 100-12800
Video: 100-12800
Electronic Shutter Speed
Photo: 1/8000-30 s
Video: 1/8000 s to the limit of frames per second
Max Photo Resolution: 3648×2736
Zoom
Digital Zoom
Photo: 4×
Video: Max 2×
Slow Motion/Timelapse: Not available
Still Photography Modes
Single: Approx. 10 MP
Countdown: Off/0.5/1/2/3/5/10 s
Standard Recording
4K (4:3): 3840×2880@24/25/30/48/50/60fps
4K (16:9): 3840×2160@100/120fps
4K (16:9): 3840×2160@24/25/30/48/50/60fps
2.7K (4:3): 2688×2016@24/25/30/48/50/60fps
2.7K (16:9): 2688×1512@100/120fps
2.7K (16:9): 2688×1512@24/25/30/48/50/60fps
1080p (16:9): 1920×1080@100/120/200/240fps
1080p (16:9): 1920×1080@24/25/30/48/50/60fps
Slow Motion
4K: 4× (120fps)
2.7K: 4× (120fps)
1080p: 8× (240fps), 4× (120fps)
Hyperlapse
4K/2.7K/1080p: Auto/×2/×5/×10/×15/×30
Timelapse
4K/2.7K/1080p@30fps
Intervals: 0.5/1/2/3/4/5/6/8/10/15/20/25/30/40 s
Duration: 5/10/20/30 mins, 1/2/3/5 hours, ∞
Stabilization
EIS:
RockSteady 3.0
RockSteady 3.0+
HorizonBalancing
HorizonSteady
EIS is not supported in Slow Motion and Timelapse modes. HorizonSteady is only available when the video resolution is 1080p (16:9) or 2.7K (16:9) with a frame rate of 60fps or below. HorizonBalancing is only available when the video resolution is 1080p (16:9), 2.7K (16:9), or 4K (16:9) with a frame rate of 60 fps or below.
Max Video Bitrate: 130 Mbps
Supported File System: exFAT
Photo Format: JPEG/RAW
Video Format: MP4 (H.264/HEVC)
Built-in Storage Capacity
The camera does not have built-in storage, but storage capacity can be expanded by inserting a microSD card.
Audio Recording: 48 kHz 16-bit; AAC
Material
Waterproof
18m without the Waterproof Case
60m with the Waterproof Case
