Integra DRX 2.4 7.2-Channel Network AV Receiver-GG
by
Integra

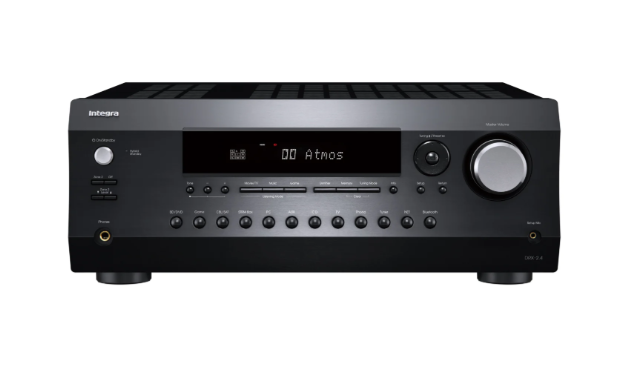

Integra DRX 2.4 7.2-Channel Network AV Receiver
High-spec HDMI® will unlock exciting features for gamers and film lovers in your family, including 8K video passthrough, HDR10+, and low-latency gameplay. Enjoy DTS: X® and Dolby Atmos® 3D soundtracks with refined Integra power and convenient voice-controllable multi-room audio.
Features:
- 5.2.2-ch Dolby Atmos® and DTS:X® playback
- DTS Virtual:X™ and Dolby Atmos Height Virtualization
- Dolby Surround® and DTS® Neural:X upmixing
- HDMI®*1 supports 8K/60p (4:4:4/12-bit*2, 4:2:2/12-bit*2, 4:2:0/10-bit), 8K/30p (4:4:4/12-bit*2, 4:4:4/10-bit, 4:2:2/12-bit), 4K/120p (4:4:4/12-bit*2, 4:4:4/10-bit, 4:2:2/12-bit) video passthrough, HDR10+, Dolby Vision™, HDR10, HLG, BT.2020, VRR (Variable Refresh Rate), DSC (Display Stream Compression), ALLM (Auto Low Latency Mode), QFT (Quick Frame Transport), QMS (Quick Media Switching), eARC (enhanced Audio Return Channel), DeepColor™, x.v.Color™, LipSync, and HDCP 2.3
- HDMI Main Out with eARC for encoded HQ audio, Sub/Zone 2 Out with OSD*3
- Bidirectional Bluetooth® wireless technology Version 4.2 + LE (A2DP v1.2, AVRCP v1.3; RX: SBC/AAC, TX: SBC/Qualcomm® aptX™/apt X HD)
- Separate Zone 2 speaker outputs enable 5.2.2-ch + Zone 2 speaker connection, 5.2.2-ch playback switching to 5.2-ch + Zone 2 playback*4
- Dedicated Zone 2 DAC supports synced/independent D/A audio distribution (including HDMI/SPDIF/NET*5) via Zone 2 speaker outputs and Zone 2 pre-out*6
- Share any MAIN audio source to a wireless headphone dock via Zone B line-out*6
- Phono equalizer (MM) and SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel)
- AccuEQ Room Calibration with subwoofer EQ and AccuReflex™
- Original DSP-based Vocal Enhancer clarifies in-program vocals/dialog
Specifications
| Power Output Front L/R | 80 W/Ch at 8 Ohms, 20 Hz–20 kHz, 0.08%, 2 Channels Driven, FTC, 170 W/Ch at 6 Ohms, 1 kHz, 10%, 1 Channel Driven, |
| Dynamic Power | 160 W (3 Ohms, Front) 125 W (4 Ohms, Front) 85 W (8 Ohms, Front) |
| Input Sensitivity and Impedance | 200 mV rms/47 k-Ohms (Line/Unbalance) 3.5 mV rms/47 k-Ohms (Phono MM) |
| THD+N (Total Harmonic Distortion + Noise) | 0.08% (20 Hz–20 kHz, Half Power) |
| Rated RCA Output Level and Impedance | 1 V rms/470 Ohms (Pre-out/Subwoofer Pre-out) 200 mV rms/470 k-Ohms (Zone B Line-out) |
| Phono Overload | 70 mV (MM, 1 kHz, 0.5%) |
| Frequency Response | 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode) |
| Tone Control | ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-Noise Ratio | 106 dB (IHF-A, Line) 80 dB (IHF-A, Phono) |
| Speaker Impedance | 4 Ohms–16 Ohms |
| Power Supply | AC 120 V~, 60 Hz |
| Power Consumption | 460 W |
| Standby Power Consumption | 0.1 W |
| Dimensions (W x H x D) | 17 1/8˝ x 6 7/8˝ x 14 13/16˝ (435 x 174 x 376.5 mm) |
| Weight | 21.2 lbs. (9.6 kg) |
| Carton Dimensions (W x H x D) | 22 1/16˝ x 12˝ x 18 3/8˝ (560 x 305 x 467 mm) |
| Weight | 21.2 lbs. (9.6 kg) |
