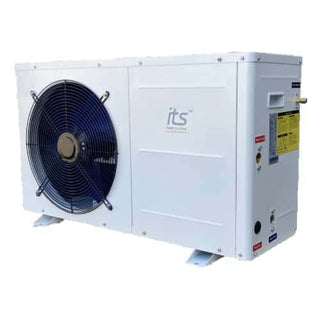

ITS 3.6kW Geyser heat Pump with Wi-Fi
ITS-3.6HD ITS-5.4HD ITS-7.6HD
W 3 600 5 400 7600
Model Number V/PH/Hz
Rated Heating Capacity * kW 0.86 1.26 1.81
R nning C rrent * A 3.99 5.84 8.4
COP * 4.18 4.29 4.2
Max Power Input kW 1.45 2.01 2.75
Max Current A 6.5 9 12
Casing metal metal metal
Refrigerant R410a R410a R410a
Circ lation P mp Internal bronze pump
Controller Time window with external temp sensor and LCD display
Ambient operating temperature range °C -7 to 43
Hot Water Generated (15/55°C) * L/h 80 120 165
Maximum water outlet temperature °C 60°C 60°C 60°C
Water Connections inch 3/4” 3/4” 3/4”
Minim m flow rate - 5deg delta * L/min 11 15 22
Noise ** dB(A) 49 49 52
L
mm
936 936 1011
Net
Dimension W 385 385 420
H 550 550 614
Weight Net Weight kg 50 54 64
