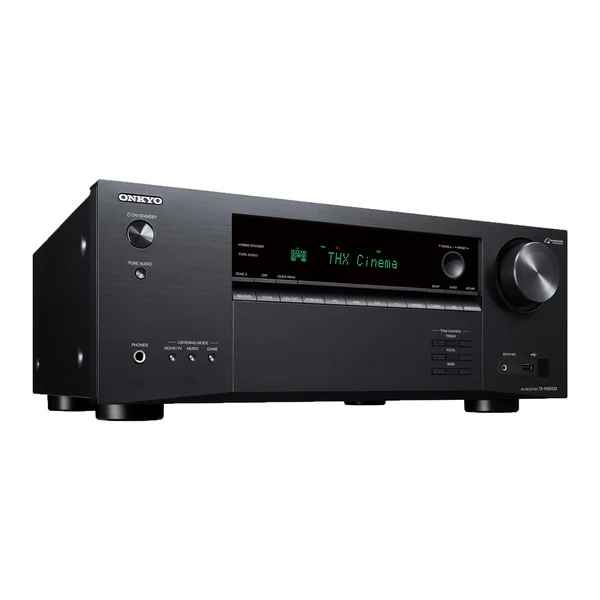

Onkyo TX-NR6100 - 7.2-Channel THX Certified AV Receiver
WHILE STOCK LASTS!!!
Massive THX® sound and Film-Like 8K resolution
Rigorously tested to receive the coveted THX Select Certification, the Onkyo TX-NR6100 7.2-Channel AV Receiver delivers precision sound and images.
With an emphasis on an enhanced gaming experience, own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. – ALLM (Auto Low Latency Mode) optimizes latency from source to screen – QFT (Quick Frame Transport) limits lag for a smoother experience.
Setting the bar for reference sound while bringing 8K video to your compatible display over HDMI® 2.1, you can enjoy Dolby Atmos® and DTS: X® soundtracks through your height-enabled surround system or use upmixing and virtualization solutions from DTS® and Dolby® to create a 3D sound-field from any layout.
Featuring three HDMI outputs and 100 watts of power per channel, the TX-NR6100 AV receiver delivers uncompressed HDMI 2.1 8K 60Hz and 4K/120Hz with HDR over 40 gbps, increasing the bandwidth over its predecessors. This SMART AV Receiver™ delivers an unparalleled movie, music, and gaming experience to your living room.
Specifications
Amplifier Section
Power output (All channels) 210 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven)
100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
Dynamic power 240 W (3 ohms, Front)
210 W (4 ohms, Front)
120 W (8 ohms, Front)
THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz–20 kHz, half power)
Input sensitivity and impedance 200 mV rms/47 k-ohms (Line)
3.5 mV rms/47 k-ohms (Phono MM)
Rated RCA output level and impedance 1 V rms/470 ohms (Subwoofer pre-out)
200 mV rms/2.2 k-ohms
(Zone 2/Zone B line-out)
Frequency response 10 Hz–100 kHz/+1 dB,
-3 dB (Direct/Pure Audio)
Tone control ±10 dB, 20 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-noise ratio 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
Speaker impedance 4–16 ohms
Tuner Section
Tuning frequency range FM 87.5 MHz–107.9 MHz
AM 530 kHz–1,710 kHz
FM/AM preset memory 40 stations
General
Power supply AC 120 V~, 60 Hz
Power consumption (operating) 635 W
Power consumption (idle) 65 W
Power consumption (standby) 0.1 W
Dimensions (W x H x D) 17 1/8˝ x 6 13/16˝ x 14 15/16˝ (435 x 173.5 x 379.5 mm)
Weight 21.6 lbs. (9.8 kg)
CARTON
Dimensions (W x H x D) 21˝ x 10 7/16˝ x 18 7/16˝ (534 x 265 x 468 mm)
Weight 27.6 lbs. (12.5 kg)
Supplied Accessories • Indoor FM antenna • AM loop antenna • Speaker setup microphone • Quick Start Guide • Remote controller • AAA (R03) batteries x 2
