Description
WHILE STOCK LASTS!!!

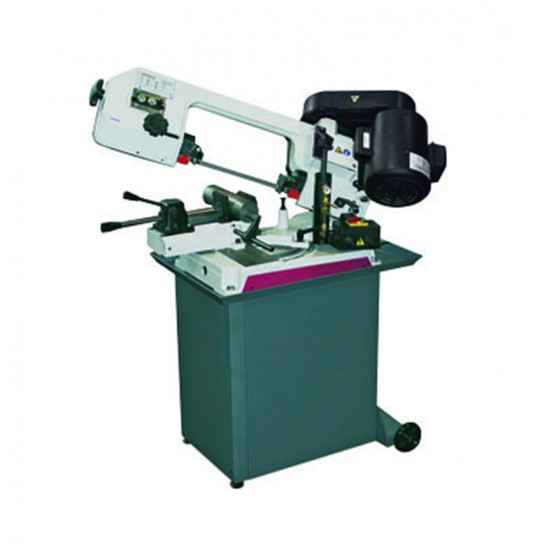

Opti S 131 GH ideal for light cutting jobs. Mitre cuts from -45 to +60 over swiveling saw arch
Quiet running
Three blade speeds
Ball-bearing 3-point blade guide
Fast maintenance of the workpiece by a quick-vise
Comes with high quality bi-metal saw blade
Base plate and frame out of cast iron
Material stop
continuously adjustable lowering by hydraulic cylinder
Emergency stop , motor protection switch
Saw arm adjustable in both directions from -45 to +60
Easy to read scale for angle adjustment
Hydraulic cylinder, continuously variable
Includes base with 2 wheels
Opti S 131 GH
•Frame out of cast iron
•tilts to each side of -45 to +60
•Motor power 410 W 230 V ~50 Hz
•Lifting the arch manually
•Feed (setback) infinitely adjustable
•Band speed 22/31/55 m/min
•Sawblade 1.638 x 13 x 0,65 mm
•Dimensions
•Length 1.000 mm
•Width 530 mm
•Height
•lower position saw bow 1.060 mm
•upper position saw bow 1.320 mm
•Net weight 78 kg
