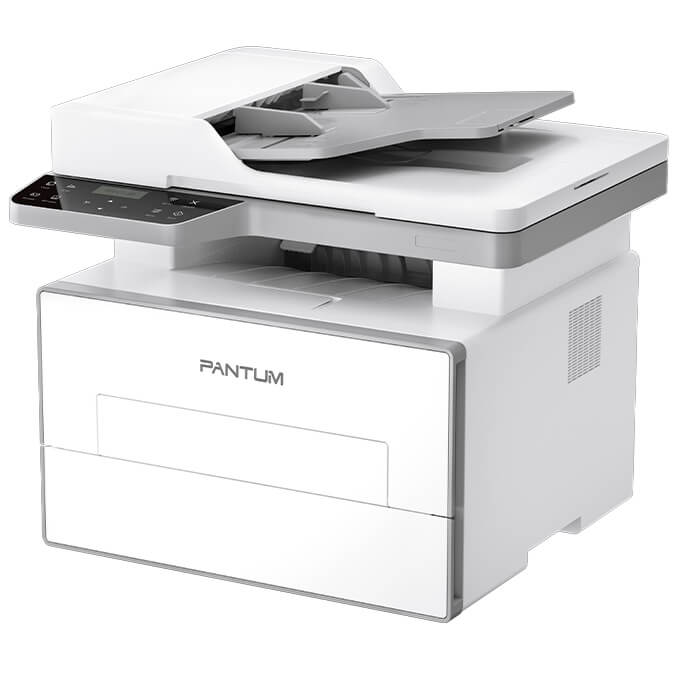

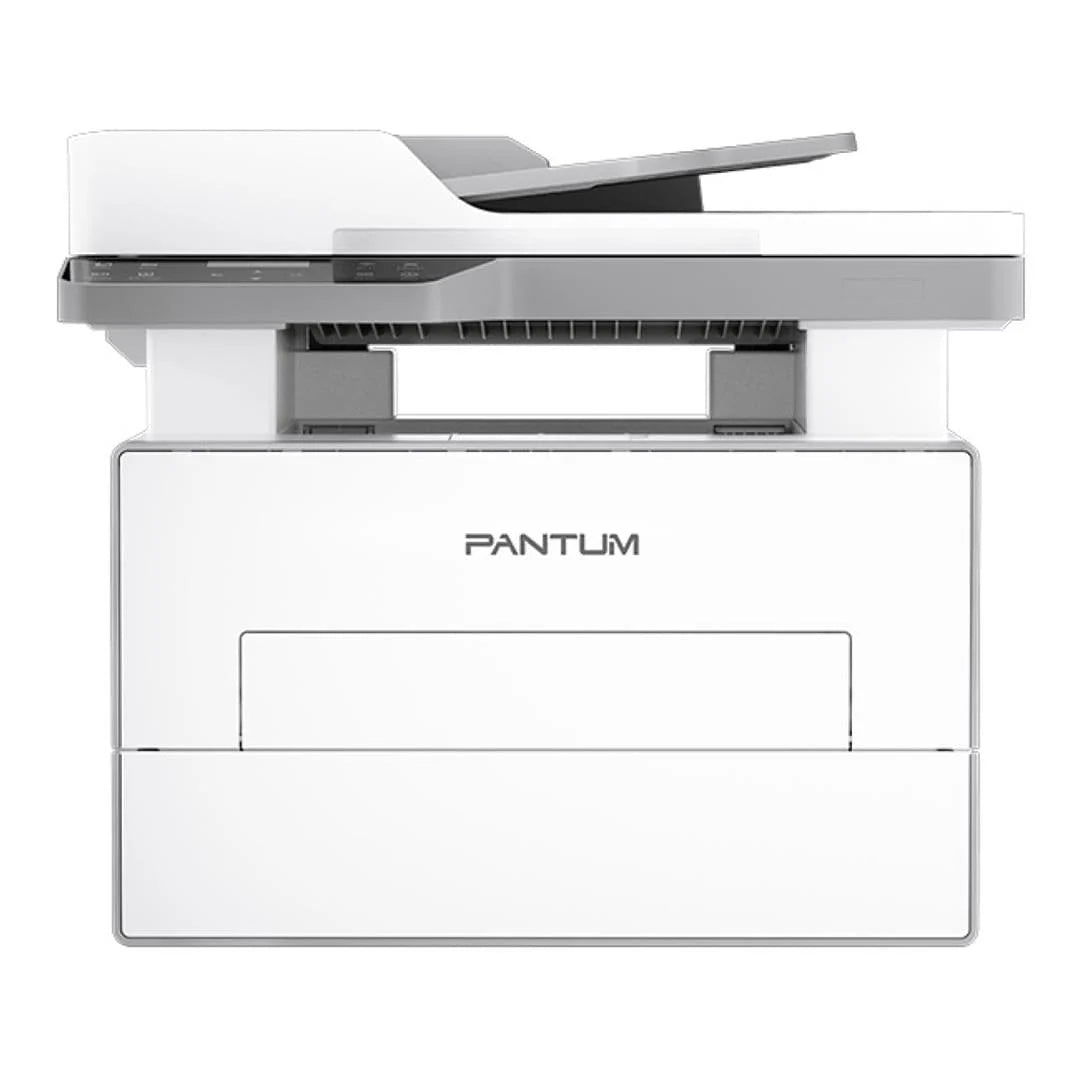

Pantum BM4245ADW A4 Multifunction Mono Laser Printer
Pantum BM4245ADW 3-in-1 Mono Laser Multifunction Printer – Print Size: A4, Functions: Print, Copy & Scan, Print Speed: Up to 33ppm, Memory: 256MB RAM, Duplex Printing: Automatic, Connectivity: Hi-Speed USB 2.0, Ethernet, Wireless 802.11a/b/g/n + Bluetooth, Paper Handling: 250 Sheet Input Tray, 50 Sheet Automatic Document Feeder, Airprint, Mopria Print Service, Pantum APP, WiFi Direct, NFC, 2-Line LCD Display, Recommended Monthly Page Volume: 1000 to 10 000 Pages
General
Control panel
2-line LCD
Processor speed
800MHz
Memory
256M
Hard disk
n/a
Recommended Monthly Page Volume
1000~10000pages
Maximum Monthly duty cycle
80,000pages
Connectivity
USB2.0（High Speed), IEEE802.3 10/100 Base-Tx Ethernet, IEEE 802.3az (EEE), 2.4G/5G dual-band WIFI (IEEE802.11a/b/g/n), Bluetooth
Power
110V model：100-127VAC，50/60Hz，9A
220V model：220-240VAC，50/60Hz，4.5A
Power Consumption
Print Average：≤525W; Standby： ≤50W;
Dormant：≤1W；Off：≤0.4w
Energy Star
Energy Star 3.0
Noise
Print：≤52dB（A）
Standby：≤30dB（A）
Print Environment
Operating Temperature：10～32℃
Relative Humidity：20%~80%RH
Altitude ≤2000m
Print
Print speed(A4/LTR)
33ppm(A4), 35ppm (Letter)
Duplex print speed
15ipm
First print out time
≤8.5s
Printer language
PCL5e, PCL6, PS3, GDI, PDF1.7
Auto Duplex Printing
Yes
USB disk Printing
No
Mobile Printing
Airprint, Mopria Print Service, Pantum APP, WiFi Direct, NFC （iOS not support)
Operating System
WindowsServer2012/Server2016/Server2019/Server2022/XP/Wi n7/Win8.1/Win10/win11（32/64 Bit）
Mac10.10～14
Ubuntu16.04、18.04, 20.04, 22.04;
Chrome：99.0.4844.57 and 103.0.5060.114
Android 6.0-13.0
HarmonyOS 1.0-3.0
ios 13.0-17
Other Printing Functions
Brochure print; poster print; N-up print
Copy
Copy speed
33cpm(A4), 35cpm (Letter)
Duplex copy
Manual
First copy out time
FB：≤10s；ADF：≤12s
Copy mode
Text, Image, Text + Image, Auto（default）
Copy Resolution
Max. 600 x 600dpi
Copy reduce / enlarge settings
25%-400%
Max.copy page
99 pages
Copy function
ID copy；Receipt copy；N-up copy；Clone copy；poster copy；Automatic ID card correction
Scan
Scan technology
CIS
Scanner type
FB+ADF
Scan mode
Color, gray, mono
ADF scan speed
24ppm (A4 ); 25ppm（Letter）
Duplex Scan
Manual
ADF capacity
50Pages（80g/㎡）
Max. Resolution
FB：1200 x 1200dpi; ADF：600×600dpi
Max. Scan size
FB：216×297mm; ADF：216 x 356 mm
Scan to
Scan to PC、Email、FTP、SMB、U flash drive
Scan format
push scan：PDF, JPG, TIFF, OFD; pull scan：BMP，JPG，PNG，TIFF，PDF, OFD
Pantum scan application
YES
Other scan function
Support pull scan，OCR
Paper Handling
Paper Input Capacity
250 pages（A4:80g/m²）
Paper Output Capacity
120 pages（80g/m²）
Paper Output Detection
NO
Media type
Plain, Thick, Transparency, Cardstock, Label ，Envelope，Thin
Media Size
A4, A5, JIS B5, IS0 B5 , A6, Letter, Legal,Executive , Folio, Oficio, Statement, Japanese Postcard, Monarch Env, DL Env,
C5 Env, C6 Env, No.10 Env, ZL, Big 16K, Big 32K, 16K,32K, B6， Yougata4, Postcard, Younaga3, Nagagata3, Yougata2
min：105*148mm max：216*356mm
Media Weight
Standard tray：60-105g/㎡；Multipurpose tray： 60-200g/㎡
Consumable
Consumable Type
Toner Cartridge & Drum Unit
Starter toner capacity
TL-C4205：up to 1500 pages
Starter drum unit lifetime
DL-C4205S: up to 12000 pages
Standard toner capacity
TL-C4205: up to 1500 pages
TL-C4205H: up to 3000 pages
TL-C4205X: up to 6000 pages
Standard drum unit lifetime
DL-C4205S: up to 12000 pages
Packaging parameters
Machine Dimension（D*W*H）
415 x 360 x 352mm
Machine Package Dimension（D*W*H）
548×429×461mm
Printer Net Weight
10.8kg (without starter cartridge)
Printer Gross Weight
14.2Kg
Cartridge Dimension（D*W*H）
Toner：
283*116*52mm（3K）
283*116*65mm（6K）
283*116*96mm（11K）
Drum unit：282*192*62mm
Cartridge Package Dimension（D*W*H）
Toner：
322*108*144mm（3K/6K）
322*177*144mm（11K）
Drum unit：359*106*224mm
Cartridge Net Weight
Toner：
0.52KG（3K）
0.565KG（6K）
0.95KG（11K）
Drum unit：0.45KG（25K）
Cartridge Gross Weight
Toner：
0.715KG（3K）
0.75KG（6K）
1.19KG（11K）
Drum unit：0.725KG（25K）
