Features
Hardwood enclosures and high-quality driver materials produce a natural sound
The speakers are enclosed in 15 mm birch plywood cabinets to deliver a natural, dynamic sound. Pioneer’s patented AFAST technology drastically reduces standing waves that can produce a muffled response in the low to mid ranges. An acoustic tube in the cabinet absorbs just the standing waves, increasing the low frequency response.

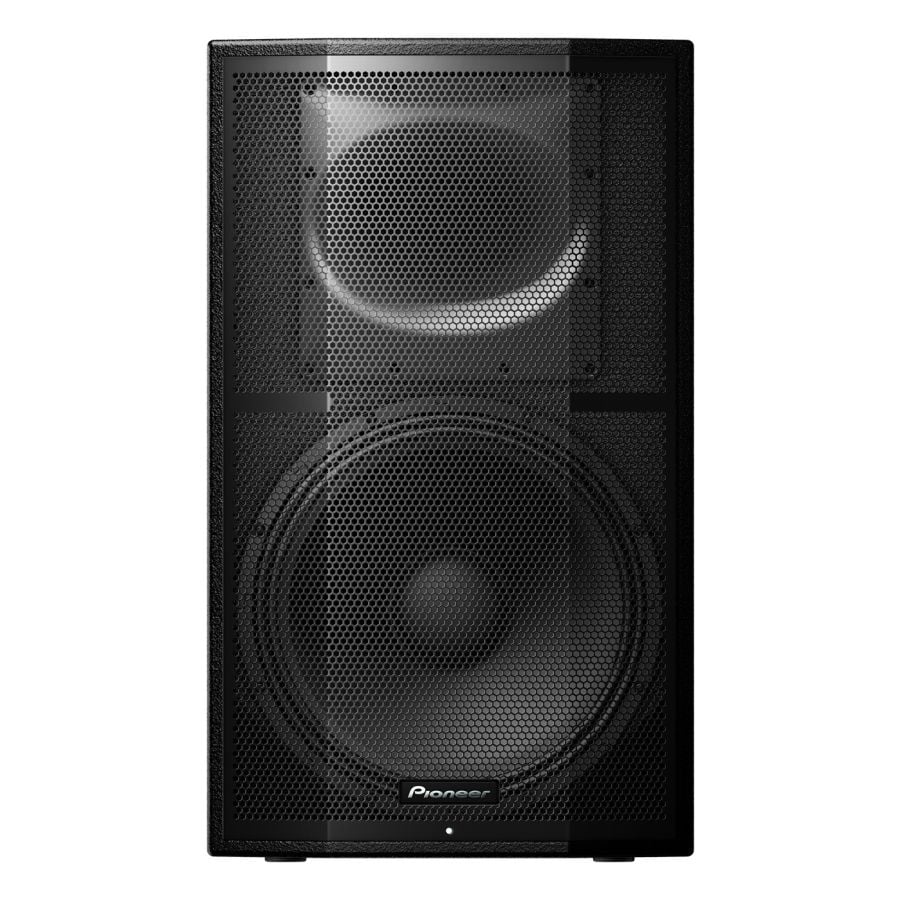

The XPRS15 uses lightweight 15-inch ferrite LF drivers and 1.75-inch titanium diaphragm compression drivers.
Powersoft Class D amps for reliable, high-powered performance
Powersoft’s new Class D amp modules produce 2400 W (peak) or 1200 W (continuous) output, similar to that of larger stand-alone speaker amplifiers. The amps are equipped with Power Factor Correction (PFC) to reduce power consumption while ensuring reliability and a steady performance in all environments.
The auto-ranging power supply means you plug in the XPRS Series anywhere in the world – including venues with generators or temporary power supplies – and expect the same high quality sound.
Advanced protection features help prolong your speakers’ life
We’ve packed the speakers with features to protect the driver, amp and power supply – giving you peace of mind, consistent high quality sound, and extending the life of your sound system.
Amplifier protection
- Thermal limiting: cuts off to prevent overheating.
- Output overcurrent: reduces the speaker’s output to safe levels in the event of output overcurrent.
Speaker protection
- DC offset removal: shuts down to prevent further damage if the speaker blows.
- Stationary High Frequency Protection: protects the speaker from loud bursts such as feedback.
- Input voltage limiter: Peak and RMS.
- Output voltage limiter: cuts the LF and compression drivers separately when either reaches their peak.
Power protection
- AC mains over-voltage protection: protects against power surges.
Plus the status LED on the front of the cabinet can has three settings – power, limiter or off – giving an optional visual reference to the status of the speaker.
High-performance drivers deliver a powerful, full range sound
Both speakers use a high-grade ferrite LF driver (15-inch) and a 1.75-inch titanium diaphragm compression driver to reproduce a clean, full range sound with low distortion even at high outputs.
Four EQ modes for a variety of genres and environments
Buttons on the back of the speakers give you instant access to four EQ modes:
- Flat: neutral production of the source audio.
- Bass +: amplifies the bass for dance music events.
- Speech: produces clear vocal sounds for seminars and speeches.
- Wedge: reduces the low frequencies to give a more balanced sound if you’re using the speaker as a floor monitor.
Rotatable horn lets you mount the speakers vertically and horizontally
The speakers’ horn gives a dispersion of 90 x 60 degrees and can be rotated by 90 degrees – giving you flexibility to mount the speakers vertically or horizontally to choose the coverage to suit your space.
