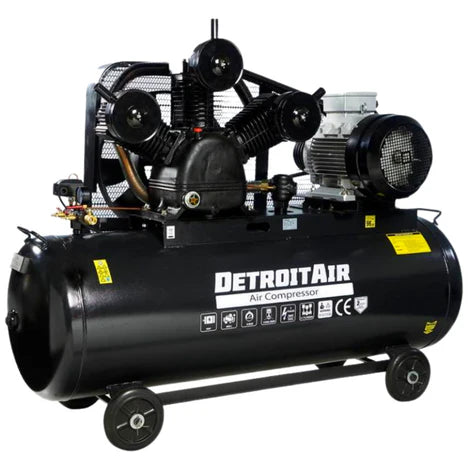

Piston Single Stage 8Bar Air Compressor 10HP 270L 900LPM
by
Detroit Air
SKU: W-0.9/8
Belt driven, composite cast iron, oil lubricated three cylinder air compressor pump.
Features and benefits
- Air receiver compliant with Occupational Health & Safety act (OSH act 85 of 1993)
- Heavy duty, double capacitor electric motor
- Scratch and corrosion resistant epoxy coated air receiver
- Supplied with all mandatory certification
Technical Data
| Piston Displacement | l/min & cfm | 1151 | |
|---|---|---|---|
| 40 | |||
| Free Air Delivered | l/min & cfm | 887 | |
| 31.3 | |||
| Max Pressure | Bar | 8 | |
| Motor | Power | kW | 7.5 |
| HP | 10 | ||
| Speed | r/min | 2950 | |
| Tank Capacity | litres | 270 | |
| Electrical Supply | mm | 380/50/2 | |
| Pump Speed | r/min | 860 | |
| Outlet Connection | 1/2"BSP | ||
| Dimensions | L x B x H (mm) | 1870X620X1210 | |
| Weight | kg | 257 | |
