Description

SOL-I-BB-M2L

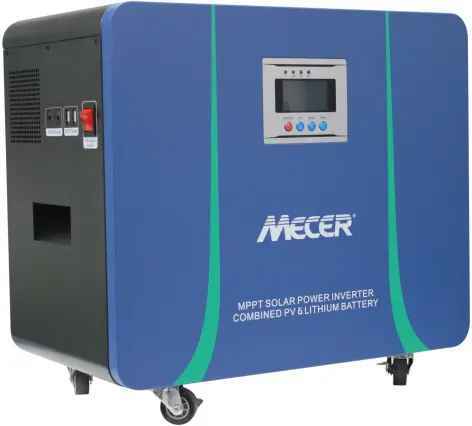

Mecer 2kVa – 2kW 25.6V 100Ah Lithium Battery 820W MPPT

• Pure sine wave output
• 2000 cycles @ DOD 80% battery
• Mains supply mode, Battery mode
• 2x 5V DC USB 2.0 ports
• 2x 12V DC output ports
• MPPT solar charge controller
• Over charge protection as well as over discharge protection
• Intelligent exhaust fan
• Technical Specification: Rated Power: 2 000VA / 2 000W
• Input: Voltage range: 170 – 275V
• Mains charging current: 10A
• Frequency Range: 45-65Hz
• Output: Voltage: 230V AC
• Frequency: 50/60Hz
• Output wave form: Pure Sine Wave
• Battery Voltage: 26.5V DC
• Battery capacity: 1X 100Ah
• Solar Charger
• Solar Charge Type: MPPT
• Maximum PV Array Power: 840W
• Number of MPPTs: 1
• MPPT Range @ Operating Voltage: 35 – 100V DC
• Maximum Solar Charge Current: 30A (Max)
• Floating Charge Voltage: 28.4V DC
• DC Output
• Low Voltage Recovery: 26.8V DC
• Low Voltage Protection: 22.4V DC
• 5V DC USB Output: 2 Pcs 5V DC, USB 2.0, Max 2A
• 12V DC Output Ports: 2 Pcs Max 2
