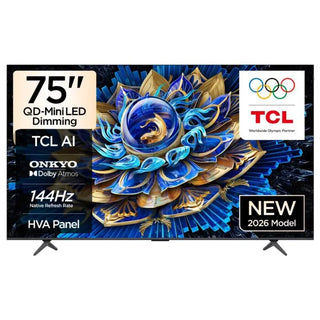

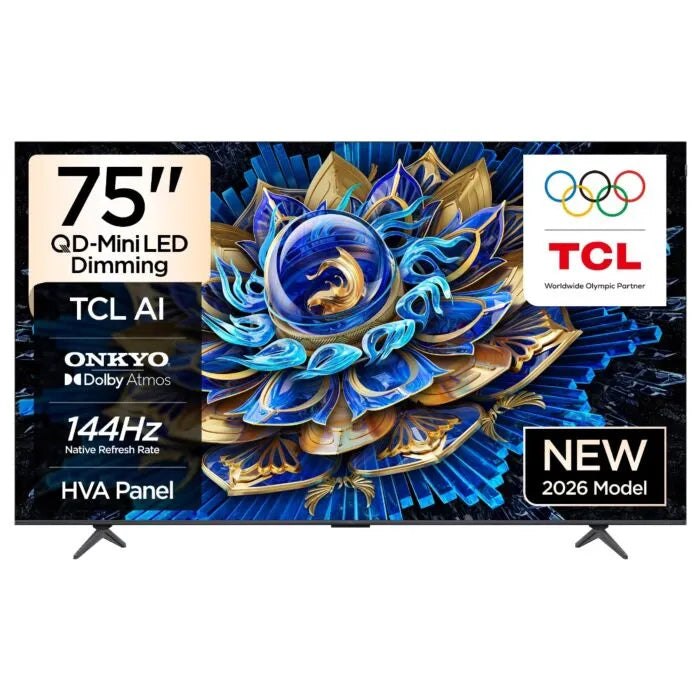

TCL 190cm (75")144Hz QD-MiniLED Google Smart TV- 75P8L

Technical Specifications
Model 75P8L
Size 75
Resolution 3840×2160（16:9）
Product Type QLED TV
Chassis Platform MT9653
DDR 3GB
EMMC 32GB
Local Dimming Yes
CPU 64-bit  A73*4 @1.39GHz max 64-bit
OS GTV
Wireless WiFi-5
Bluetooth BT.5.4
Power Supply AC 100V-240V 50/60Hz
Power Consumption (TV On) 280W
Power Consumption (Standby) ﹤0.5W
ECO Energy Efficiency Yes
Brightness (cd/m2) 450 (typ);
Viewing Angle (H/V) (Open Cell) 178°/178° (typ.)
Color 1.07G 8bit+FRC, Quantum Dots
Refresh Rate (Hz) 144Hz(VRR 144Hz/DLG 288Hz)
MEMC 120Hz
Color Gamut typ 93% DCI-P3
Picture Mode Standard,Sports,Movie,Intelligent,Vivid,FIL
MMAKER MODE,Game,PC
Picture certification HDR10+ 、HLG、HDR、Dolby Vision、
Freesync
Special Feature / ONKYO Audio System
Channel Configuration 2.0CH
Audio Power Output (THD=7%) 2*10W
Sound Mode Dynamic,Standard, Movie, Music, Voice,
Game, Sport
Audio Certification DTS Virtual:X &Dolby Atmos
Voice input via remote control.
Hands-free voice input via built-in MIC
Input Method T-IME, Gboard, Virtual Remote Keyboard
HDMI CEC Yes
Connection authentication Airplay2
DTV Programme only EPG，Subtitle，Parental Control
Music MP3, MKV, WMA, AVI
Picture JPEG/PNG/BMP/HEIF codec
Mutilmedia Video Decoder H.264,H.265,MPEG1/2/4,WMV,VC1,VP8,
VP9, AV1
Video Format up to Up to 4K@60Hz
USB Mouse/Key Board Yes
Operation Manual English
Remote Control and Batteries RC813A(with 2 batteries)
Base Stand Integrated in Package Yes
AC Power Cord 1 pcs
Set Size with Stand (WxHxD) 1666*1028*292
Set Size without Stand (WxHxD) 1666*958*70
Stand (Basic) (WxD) 1350*343
Adjust Stand No
Support Floor Stand No
Set Weight with Stand 24
Set Weight without Stand 23.4
Gross Weight with Packaging (Kg) 34.2
Carton Dimensions LxWxH (mm) 1850*178*1125
Container Loading---20 feet (pcs) 80 (w/o pallet)
Container Loading---40 feet (pcs) 166(w/o pallet）
Container Loading---40 feet High (pcs) 166 (w/o pallet)
VESA Mounting WMB33-75
VESA Spec (mm) 400×400
