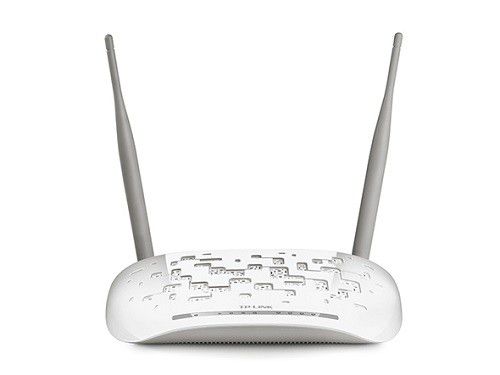

TD-W8961N
300Mbps Wireless N ADSL2+ Modem Router

All-in-One Device: ADSL2+ Modem, NAT Router, 4-Port Switch and Wireless N Access Point
Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even the HD video streaming
Easy Setup Assistant with multi-language support provides quick & hassle-free installation
Easy one-touch wireless security encryption with the ‘WPS’ button and easy Wi-Fi On/Off button

Bringing Stability and Strength to Your Home Network
300Mbps Wireless N ADSL2+ Modem Router

All-in-One Device with Stronger Wi-Fi
Combined with ADSL2+ modem and NAT Router, TD-W8961N is an incredibly robust all-in-one device that provides a full rate of ADSL2+ /ADSL2 /ADSL standard with the superb reliability and a cost-effective solution for home and small business.

Wi-Fi Speed Up to 300Mbps
With 300Mbps wireless speeds on the 2.4GHz band and 4 Fast Ethernet LAN ports, TD-W8961N is perfect for streaming in HD, online gaming and other bandwidth-intensive applications.

Powerful Antennas
Two external 5dBi high-gain antennas transmit signal to every corner of your home, creating a strong, stable Wi-Fi network.

Specifications
Hardware Features
Interface : 4 10/100Mbps RJ45 Ports , 1 RJ11 Port
Button: 1 Power On/Off Switch, 1 WPS Button, 1 Wi-Fi on/Off Button
External Power Supply: 9VDC/0.6A
IEEE Standards: IEEE 802.3, 802.3u

ADSL Standards:
Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite)
ITU-T G.994.1 (G.hs),
ITU-T G.995.1

ADSL2 Standards:
ITU-T G.992.3 (G.dmt.bis),
ITU-T G.992.4 (G.lite.bis)

ADSL2+ Standards: ITU-T G.992.5
Dimensions ( W x D x H ) : 7.7 * 5.1 * 1.4 in. (195 * 130 * 35 mm )
Antenna Type : Omni directional, Fixed
Antenna Gain : 2x5dBi

Wireless Features
Wireless Standards: IEEE 802.11n, 802.11g, 802.11b
Frequency: 2.400-2.4835GHz
Transmit Power : Wireless Security: Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering

Software Features
Quality of Service : QoS Remarking based on IPP/ToS, DSCP and 802.1p

Security:
NAT Firewall,
SPI Firewall,
MAC / IP / Packet / Application / URL Filtering,
Denial of Service (DoS),
SYN Flooding,
Ping of Death

Management:
Web Based Configuration (HTTP),
Remote management,
Telnet management,
Command Line Interface,
SSL for TR-069,
SNMP v1/2c,
SNMP over EOC,
Web Based Firmware Upgrade,
CWMP(TR-069),
Diagnostic Tools

Port Forwarding : Virtual Server, DMZ, ACL(Access Control List)
VPN Pass-Through : PPTP, L2TP, IPSec Pass-through

ATM/PPP Protocols:
ATM Forum UNI3.1/4.0,
PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516),
IPoA (RFC1577/2225),
PVC - Up to 8 PVCs

Advanced Features:
Traffic Shaping (ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT);
PVC/Ethernet Port Mapping
VLAN, 802.1P,
Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS,
IGMP snooping V1/2
IGMP Multicast,
UPnP

Others
Certification: CE, FCC, RoHS
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista? Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux.

Environment:
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

What's in the box
TD-W8961N
External Splitter
RJ-11 Telephone Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Power Adapter
